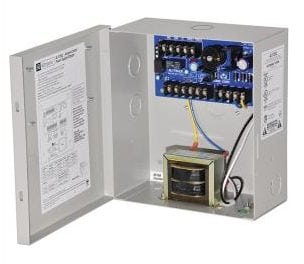

AL175UL is a two output Switching Power Supply/Charger that converts a 115VAC 60Hz input into two individually PTC protected 12VDC or 24VDC outputs. Minimum order: 2.
AL175UL is a two output Switching Power Supply/Charger that converts a 115VAC 60Hz input into two individually PTC protected 12VDC or 24VDC outputs.
*** Input: Input 115VAC, 60Hz, 0.6 amp. Access control trigger input.
*** Output: 12VDC or 24VDC selectable outputs. 1.75 amp supply current. Two Class 2 Rated power-limited outputs. (1) Fail-Safe/Fail-Secure lock output (switched). (2) Auxiliary power output (unswitched). PTC protected outputs, rated @ 2.5 amp. Filtered and electronically regulated output. Short circuit and thermal overload protection.
*** Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery
when AC fails. Maximum charge current 0.4 amp.
*** Supervision: AC fail supervision (form “C” contacts). Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).
*** Visual Indicators: AC input and DC output LED indicators.
*** Electrical: Operating temperature: 0º C to 49º C ambient. 10.75-21.5 BTU/Hr. System AC input VA requirement: 69VA.

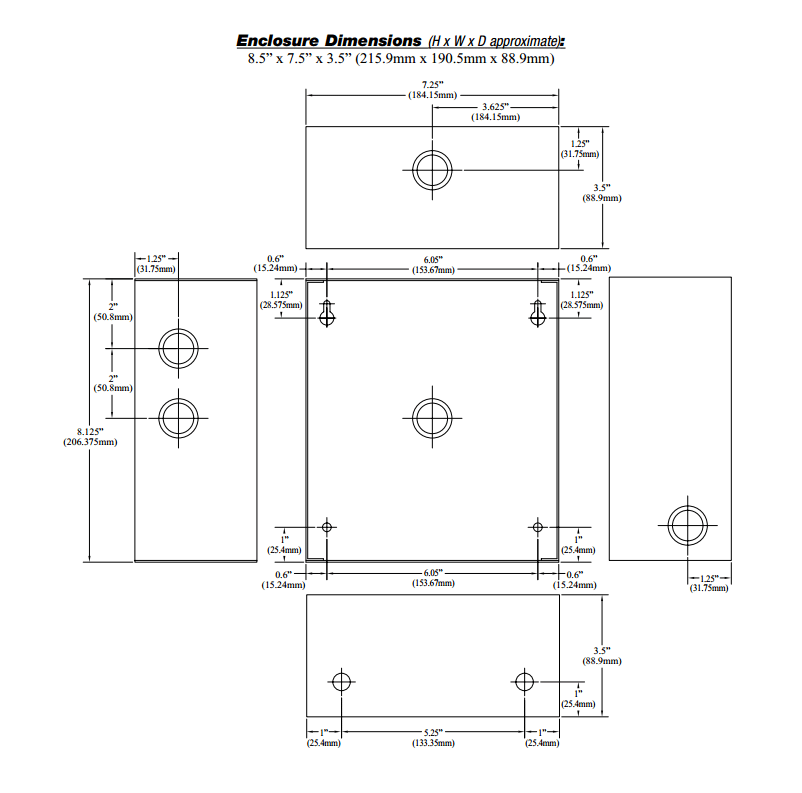

*** Mechanical: Enclosure Dimensions (H x W x D approx.): 8.5” x 7.5” x 3.5” (215.9mm x 190.5mm x 88.9mm). Product weight (approx.): 5.1 lbs. (2.31 kg). Shipping weight (approx.): 5.6 lbs. (2.54 kg).
*** Agency Approvals: UL 294 UL Listed for Access Control System Units. CUL Listed – CSA Standard C22.2 No.205-M1983, Signal Equipment. MEA – NYC Department of Buildings Approved. CSFM – California State Fire Marshal Approved.
