Description

Trilogy Networx™ Locks support 802.11 or ethernet to save time, money and

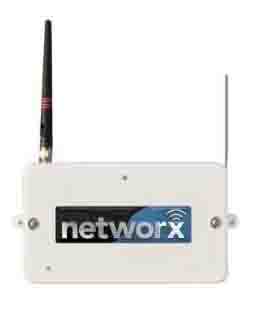

eliminate programming and retrieving audit trail information at the door. Up to 2000 locks and a PC communicate wirelessly through bidirectional Gateways – eliminating the need for door-to-door programming and audit trail retrieval. In seconds, global lockdown or unlock can be implemented from any Trilogy lock, even if the DL-WINDOWS computer is inaccessible or totally offline!
*** Network Interface – INTERFACE: Ethernet 10Base-T or 100Base-TX (using RJ45 Jack). PROTOCOLS: TCP/IP, UDP/IP, DHCP.
*** 802.11 Wireless Specifications – WIRELESS STANDARDS: IEEE 802.11b; 802.11g. FREQUENCY RANGE: 2.412 – 2.484 GHz. OUTPUT POWER: 14 dBm + 1.5 dBm/-1.0 dBm. MAXIMUM RECEIVE LEVEL: -10dBm (with PER < 8%). DATA RATES WITH AUTOMATIC FALLBACK: 54Mbps – 1Mbps. RANGE: Up to 328 feet indoors. MODULATION TECHNIQUES: OFDM, DSSS, CCK, DQPSK, DBPSK, 64 QAM, 16 QAM.
*** Network Interface – INTERFACE: Wireless 802.11b, 802.11g and 10/100 Ethernet. PROTOCOLS: TCP/IP, UDP/IP, DHCP.
*** Security: IEEE 802.11 – PSK with AES Encryption 128-bit.
*** Encryption: 128-bit AES Rijndael encryption.
*** A.L. Radio Link: (1) 900 MHz GFSK. (2) 50 channels. (3) 10mW power output.
*** Input Power – VOLTAGE: 5 – 6 volts AC/DC.
*** Environmental – OPERATING TEMPERATURE: -20˚ to 60˚C (-4˚ to 140˚F). STORAGE: -40˚ to 85˚C (-40˚ to 185˚F).
*** Power Consumption – AVERAGE POWER CONSUMPTION: (1) 1300 mW (WLAN mode; maximum data rate). (2) 300 mW (WLAN mode; idle). (3) 750 mW (Ethernet Mode). PEAK SUPPLY CURRENT: 650 mA. INPUT VOLTAGE: 5 – 6 volts AC/DC
*** Environmental – OPERATING TEMPERATURE: -20˚ to 60˚C (-4˚ to 140˚F). STORAGE: -40˚ to 85˚C (-40˚ to 185˚F). No network activity or bandwidth usage until user operates DL Windows software to send programming to or receive log data from locks. Exception, during emergency lockdown command Gateways communicate through the network. Gateways will send less than 1000 bytes during emergency command.
*** Trilogy Networx Lock Specifications: Weatherproof locks for indoor/outdoor use with wide operating temperature range (-31 to 151 degrees F). Industrial strength BHMA Grade 1 durability and vandal-resistant all-metal keypad for PIN codes.
