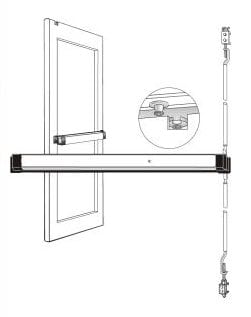

Narrow Stile Motorized Latch Retraction Concealed Vertical Rod Exit Device for Aluminum/Glass Doors. The high speed/low current draw motor offers a powerful yet efficient system that allows for lighter gauge wiring and energy-saving power supply.
*** Features: Patented top latching mechanism that interlocks door to frame. Top and bottom steel rods are adjustable. Pushbar is anodized or clad, not plated. Its easy to install. It has a clean, unobtrusive design. It was constructed strong, durable for a high level of security. It is non-handed. The lever entry trim is field reversible.
*** The SE motorized latch retraction provides near-silent operation for quiet environments such as hospitals, offices, hotels and libraries where solenoid-driven devices would be disruptive. The high speed/low current draw motor (0.4 A run current 0.2 A hold current) offers a powerful yet efficient system that allows for lighter gauge wiring and an energy-saving reduced amperage power supply. The device also features combined electric dogging and electric latch retraction which minimizes hardware projection and noise.
*** Certifications: Life-Safety Listings. ANSI/BHMA A 156.3, Grade 1. California State Fire Marshall. New York City MEA.
*** Misc: The pushbar has a minimum opening width of 36″ and is made of extruded aluminum, clad or anodized with a clear finish. Standard dogging is with hex key. Fasteners are standard self-tapping screws. The strike is made of hardened steel. It carries a 5 year limited warranty.
